Pneumatic Pressure Valves

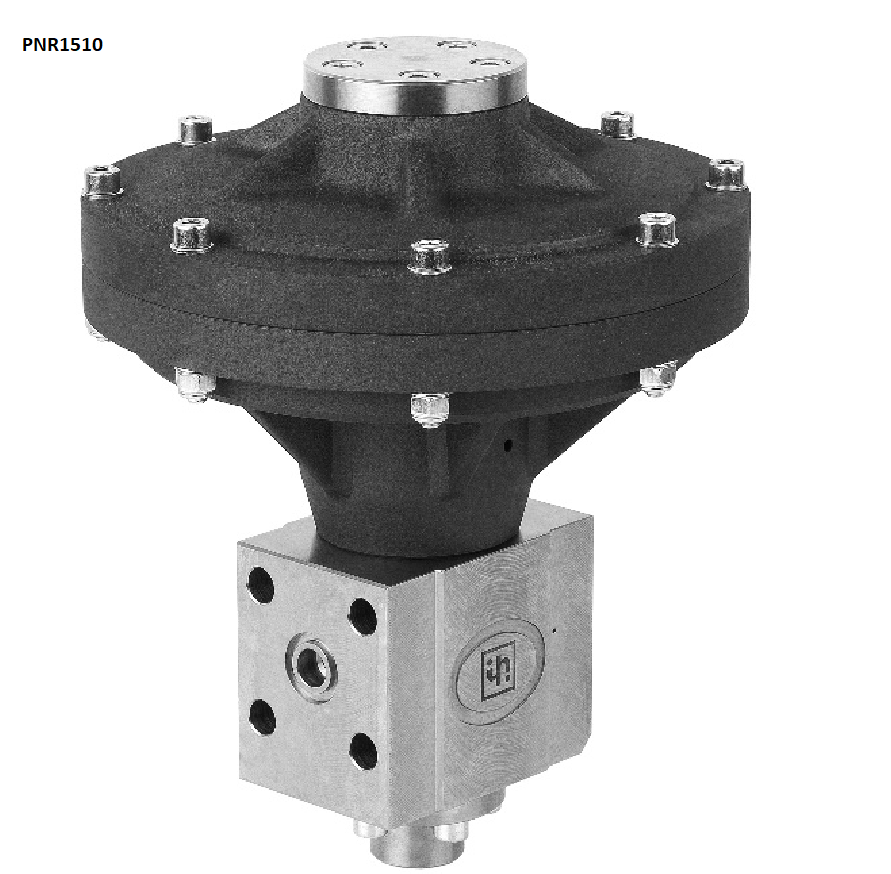

PNR1510

Specifications

Adjustment: Pneumatic with 3/2 way function

Basic position: Compressed air outlet = working pressure outlet

Working pressure: max. 1500 bar

Flow rate: max. 130 L/min

Temperature: max. 40 °C

Air pressure: max. 7.5 bar

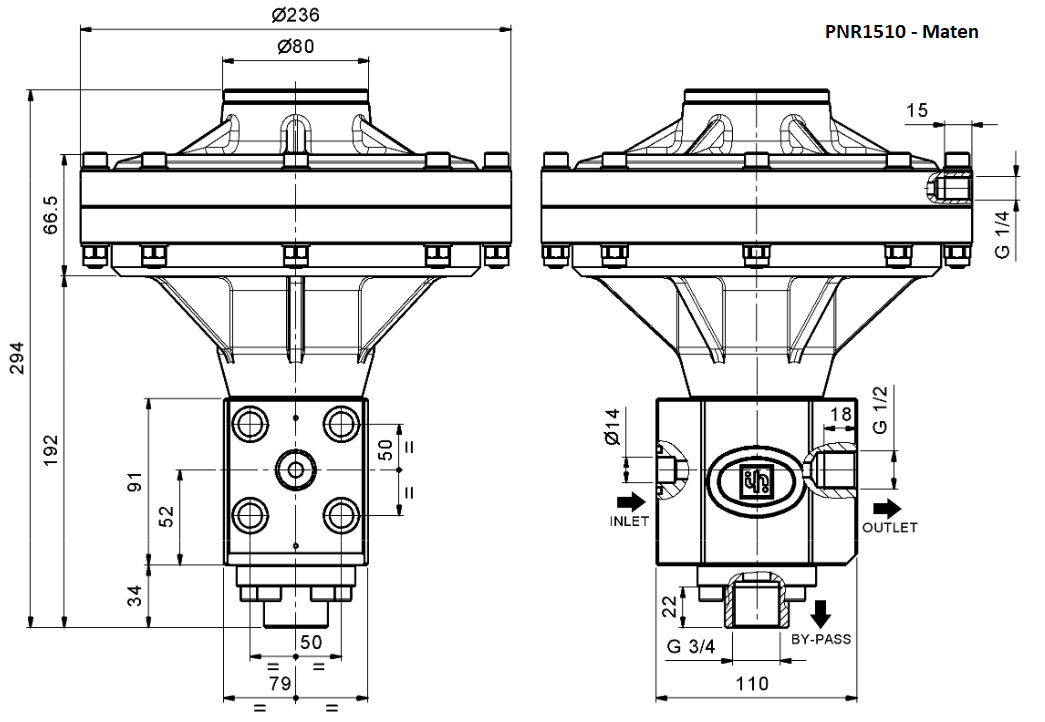

Connection dimensions:

Inlet: 14 mm sealing lens

Pressure connection: 1/2" female thread

Bypass: 3/4" internal thread

Compressed air connection: 1/4" female thread

Material:

Stainless steel 1.4307


Function:

  • The operating pressure is adjusted against the flow by means of a compressed air control valve.

  • The overflow water is discharged via the bypass.

  • The system is protected against overpressure.


    • Installation position: Random

    Weight: 13.5 kg


    Fits pumps: SM - SKH


    Specifications

    Adjustment: Pneumatic with 3/2

    road function

    Basic position: Compressed air out = working pressure out

    Working pressure: max. 1500 bar

    Flow rate: max. 130 L/min

    Temperature: max. 40 °C

    Air pressure: max. 7.5 bar

    Connection dimensions:

    Inlet: 14 mm sealing lens

    Pressure connection: 1/2" female thread

    Bypass: 3/4" female thread

    Compressed air connection: 1/4" female thread

    Material:

    Stainless steel 1.4307


    Function:

  • The operating pressure is adjusted against the flow by means of a compressed air control valve.

  • The overflow water is discharged via the bypass.

  • The system is protected against overpressure.


    • Installation position: Random

    Weight: 13.5 kg


    Fits pumps: SM - SKH
